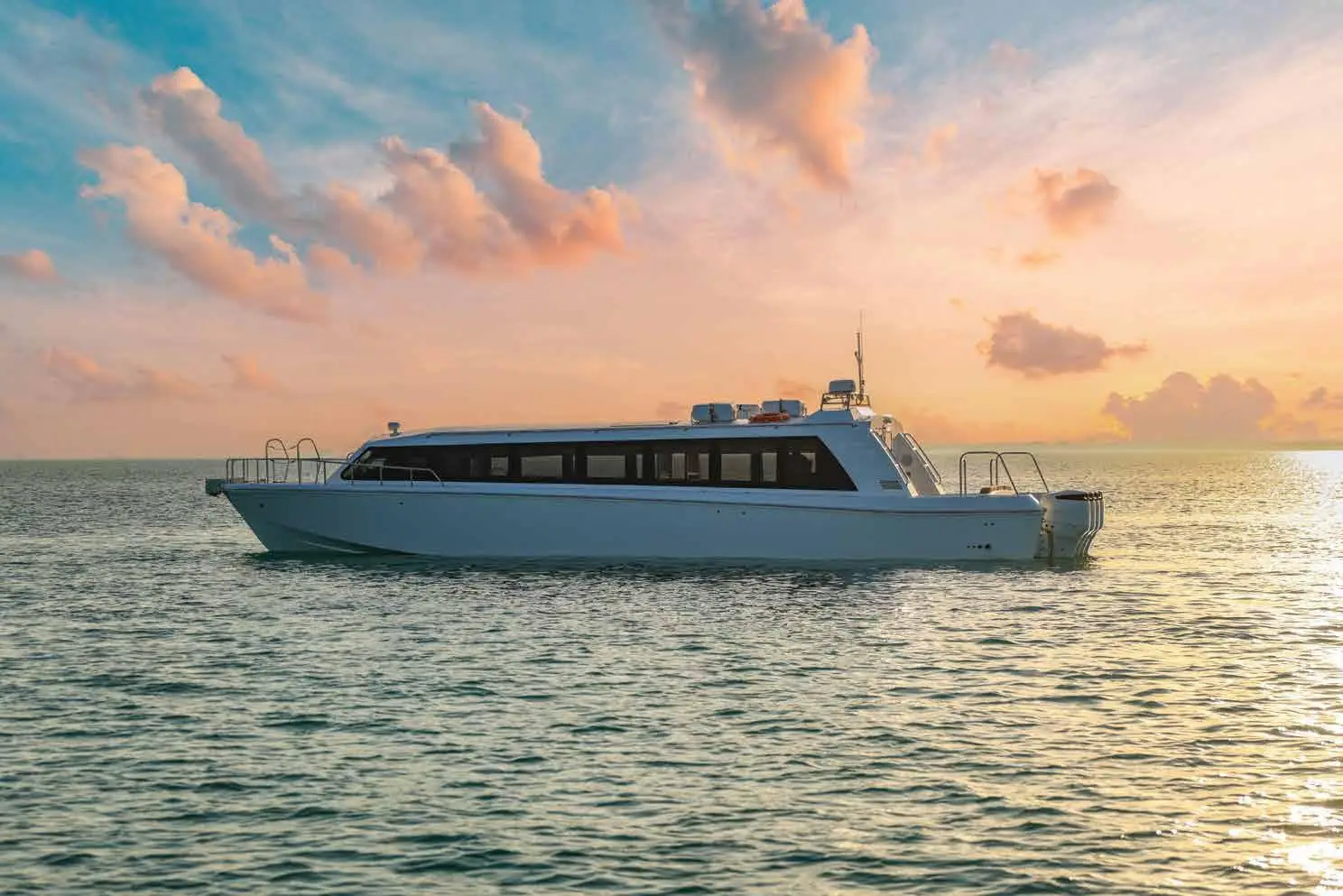

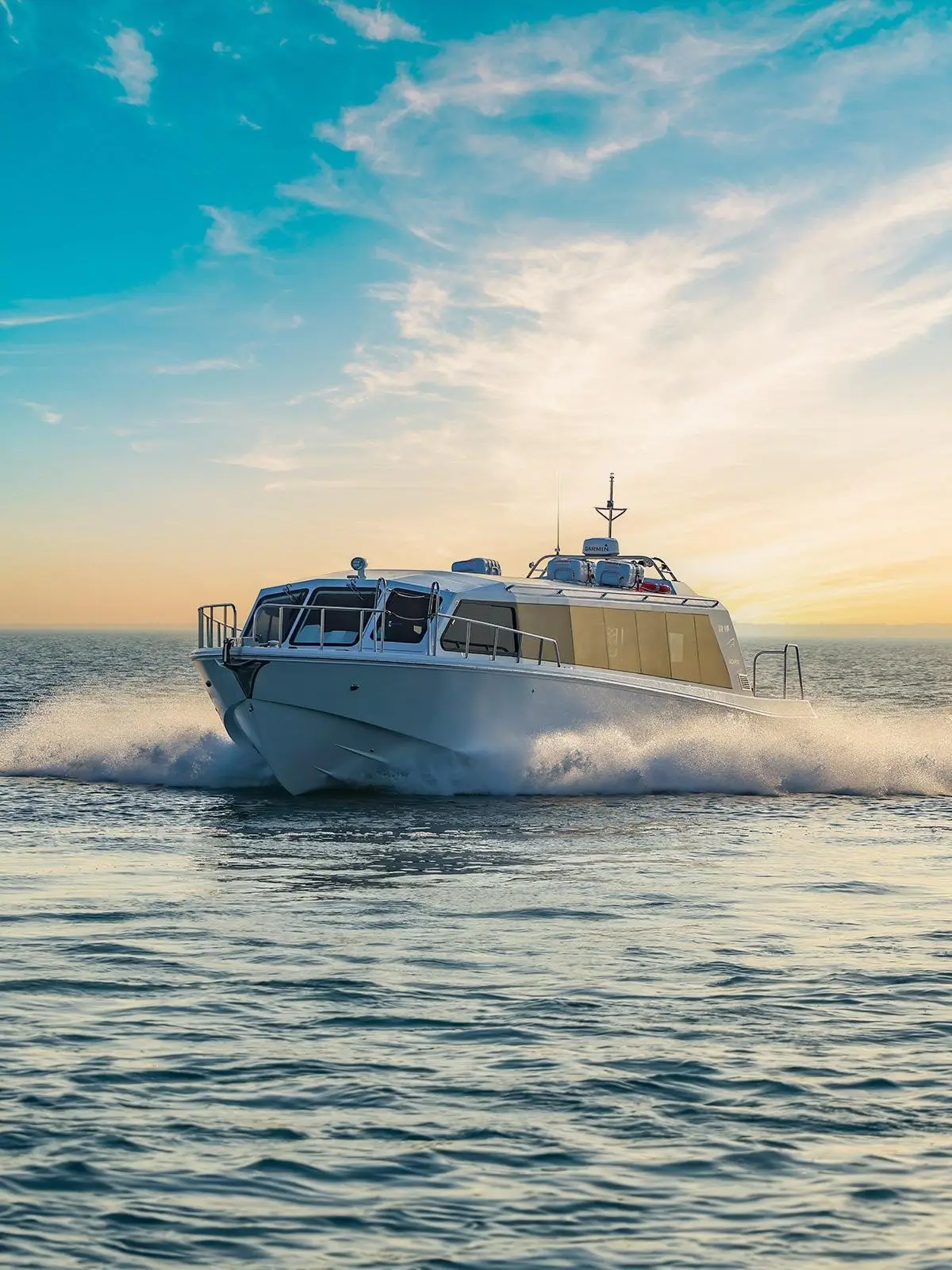

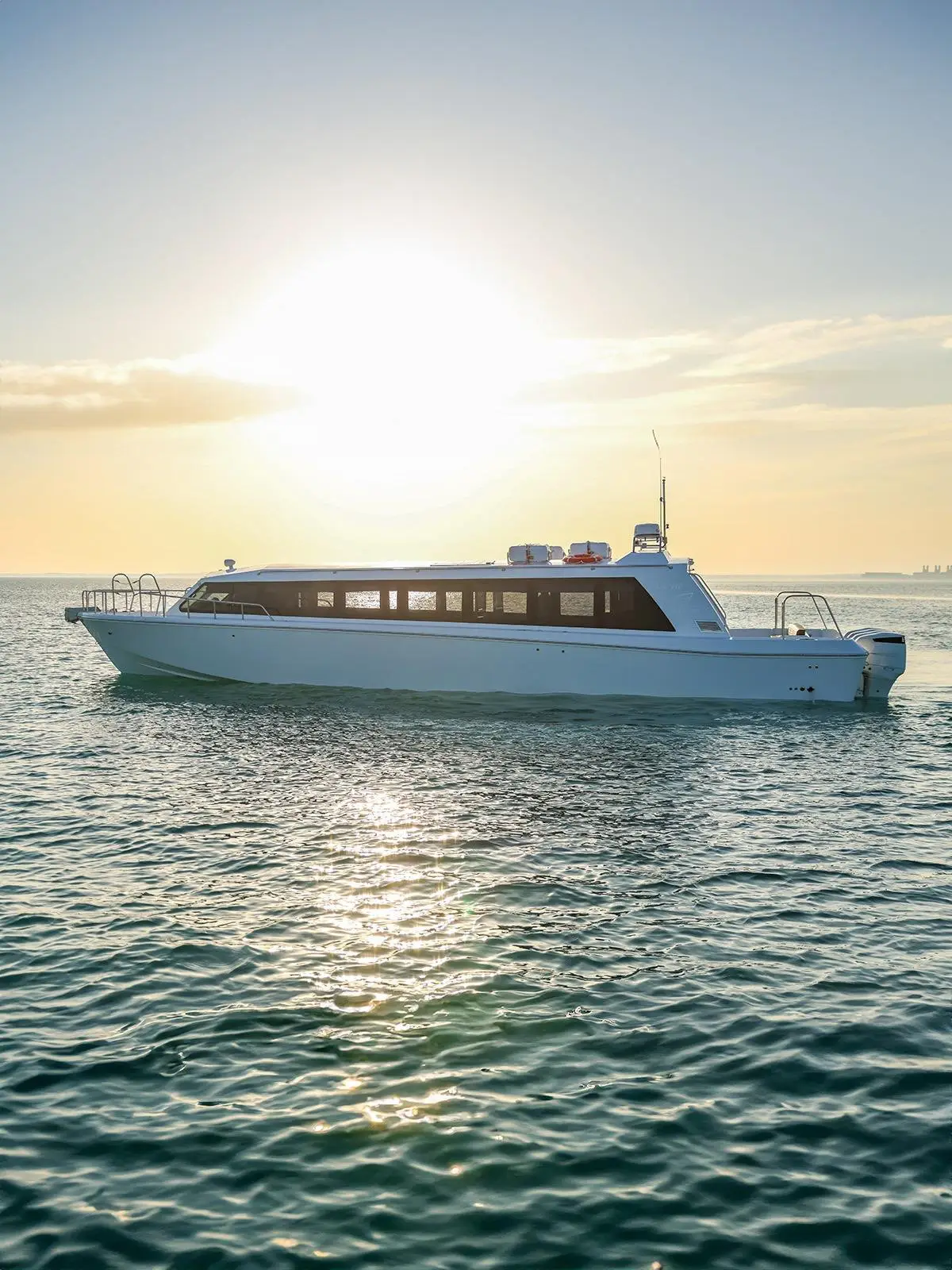

530 VIP TRANSPORTER

Excellent quality and affordable prices

Wave Breaker in Turkey

Rina A Class and CE Certified

KEY FEATURES

Length Overall (Moulded) 52’49” (16.00 Mtr.)

Beam (Moulded) 13’12” (4.00 Mtr.)

Draft (Hull) 3.’14” (0.96 Mtr.)

Displacement (Full Load) 14515 Kgs. (16 Tons estimated)

Persons Capacity 22 Passengers + 2 Crew

Fuel Capacity (Gasoline) 264 Gal. (1000 Ltrs.)

Fuel Capacity (Diesel) 53 Gal. (200 Ltrs.)

Water Tank Capacity 53 Gal. (200 Ltrs.)

Max. Engine HP 1200HP (Recommended 4 x 300HP)

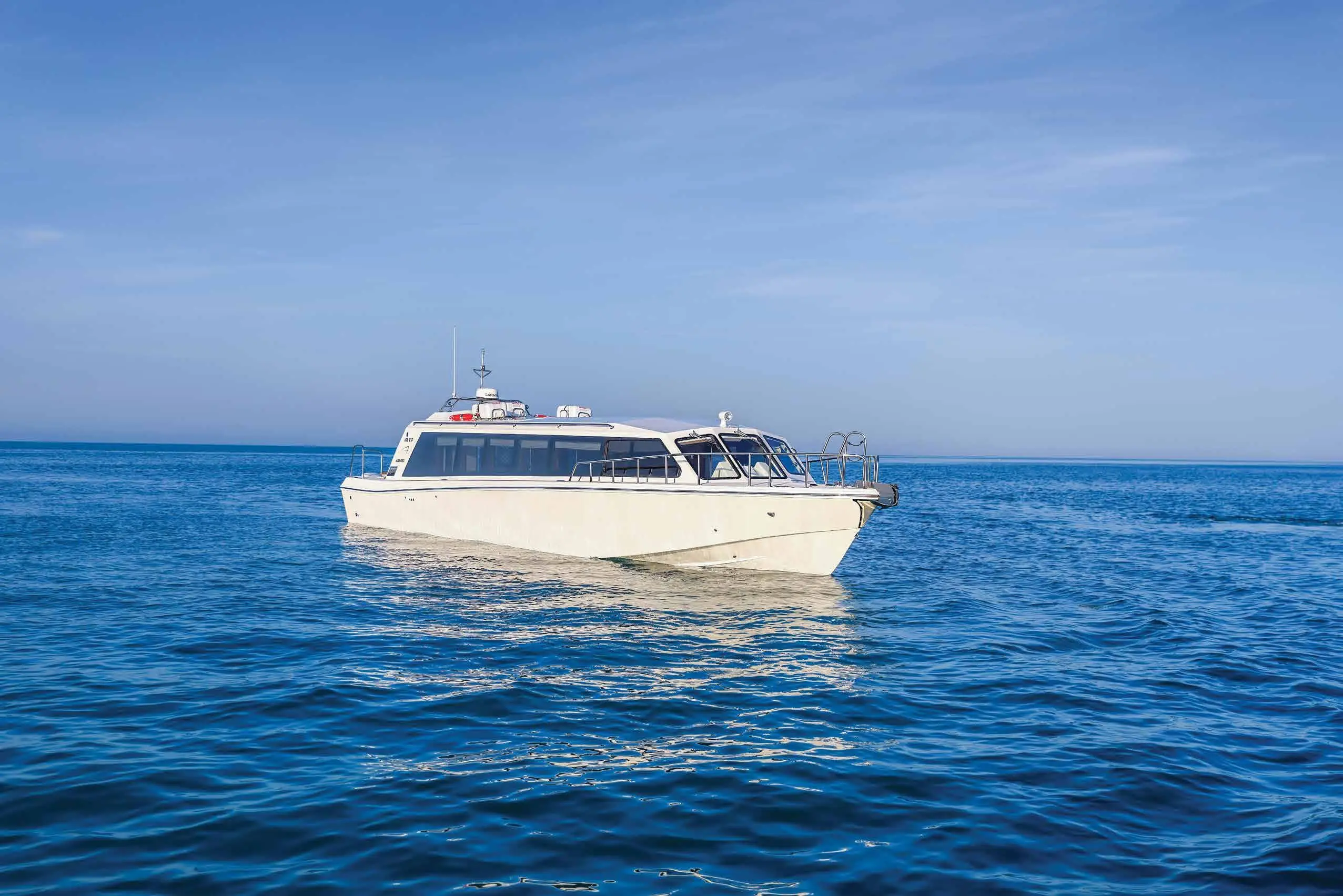

The 530 VIP Transporter combines luxury, comfort, and performance for premium guest transportation. Featuring a fully enclosed, air-conditioned cabin, high seating capacity, and powerful outboard engines, it’s the perfect choice for hotels, resorts, marinas, and private transfers. Set a new standard in VIP marine travel.

FACTORY EQUIPMENT (INCLUDED IN THE PRICE)

1. Hull and Deck finished in White Gel Coat
2. Deck areas in non-slip GRP
3. Aft GRP entrance door in Port side
4. Teakline flooring (forward cabin,main saloon and aft
saloon)

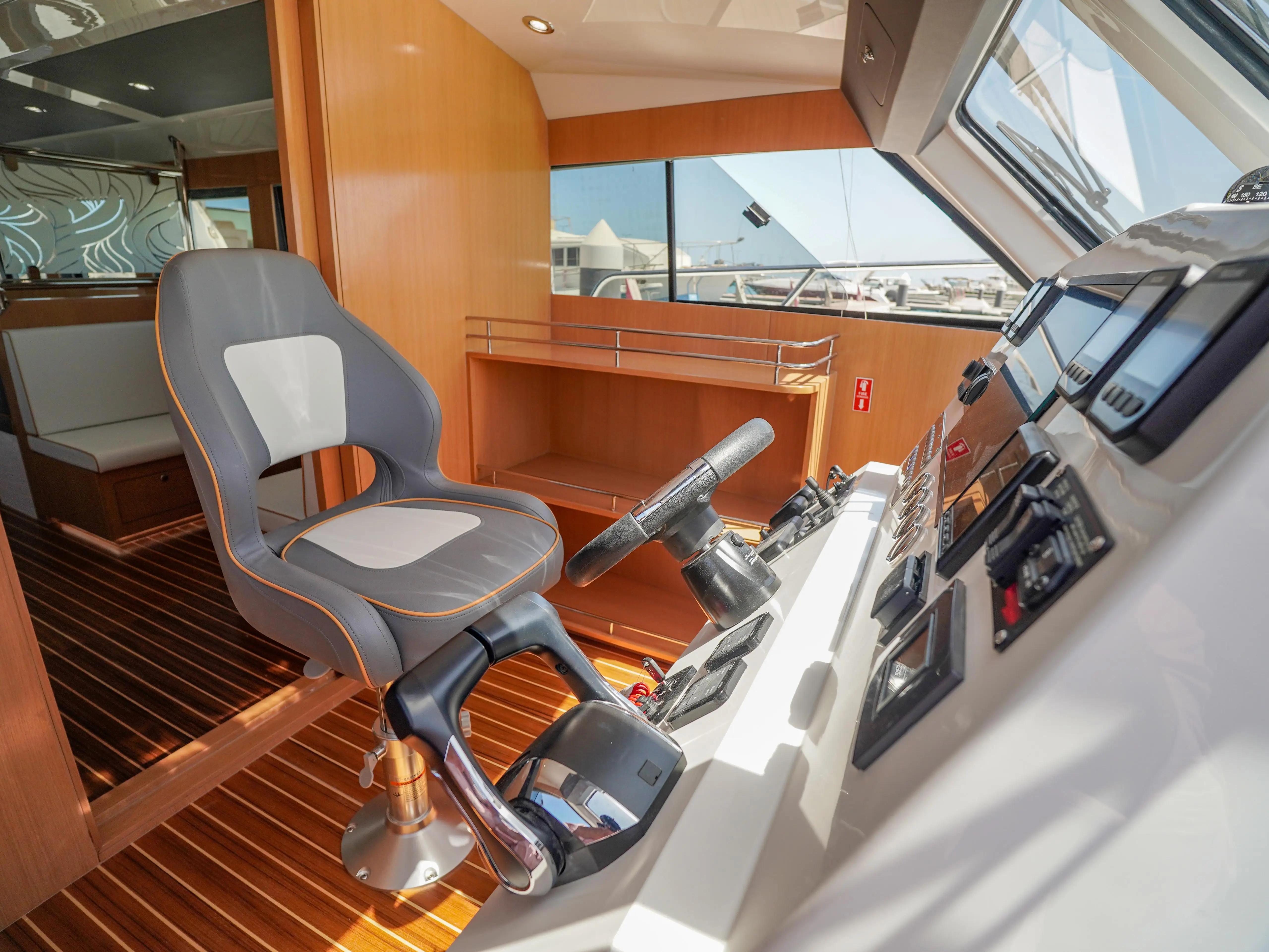

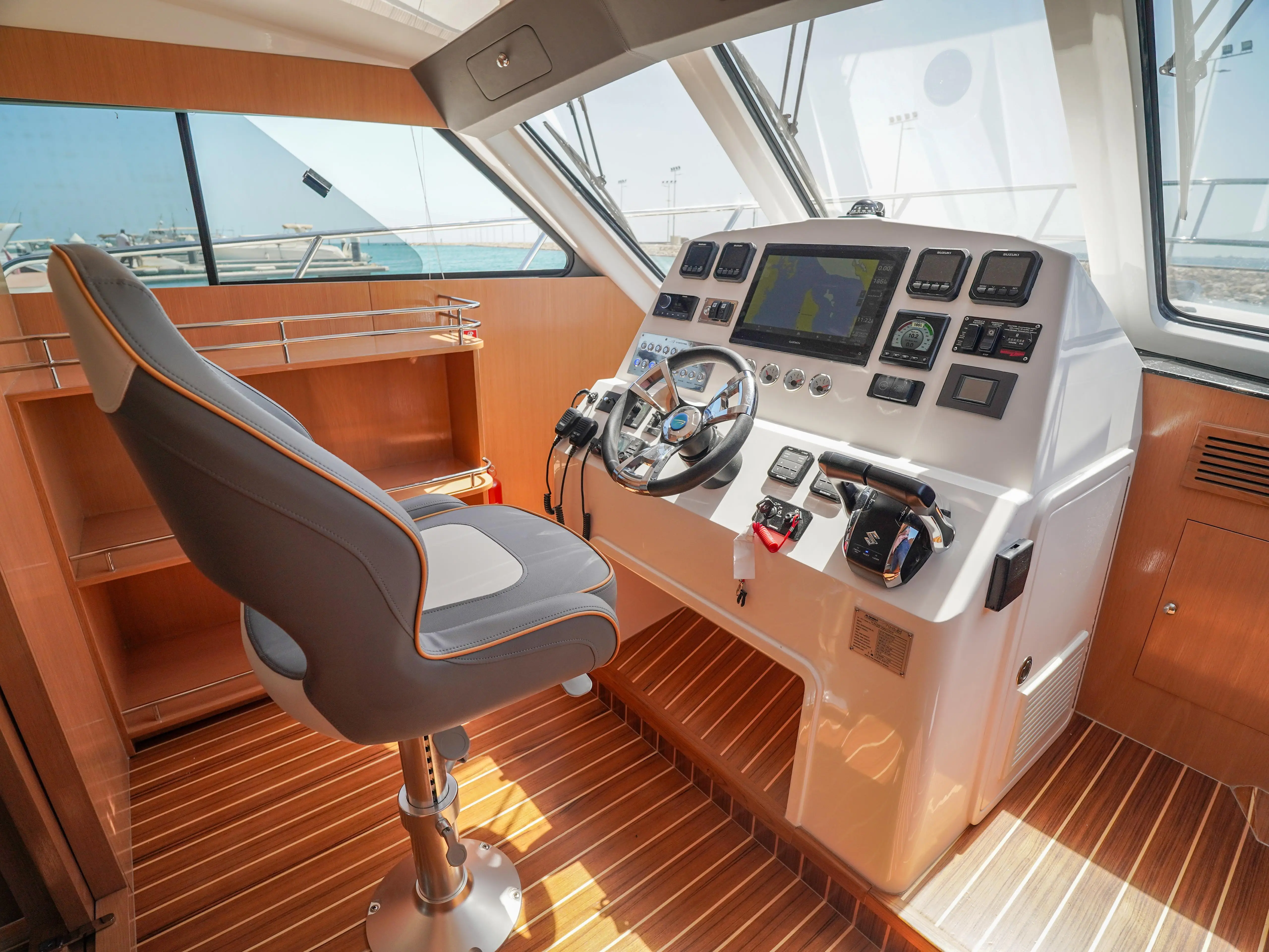

5. Pilot seat with cushion
6. Sliding aluminum frame window at foredeck Port &
STBD side (captain seat), 3 x fixed aluminum framed
window at front (all saloon windows in grey tempered
glass with Romanian style curtains Port & STBD))

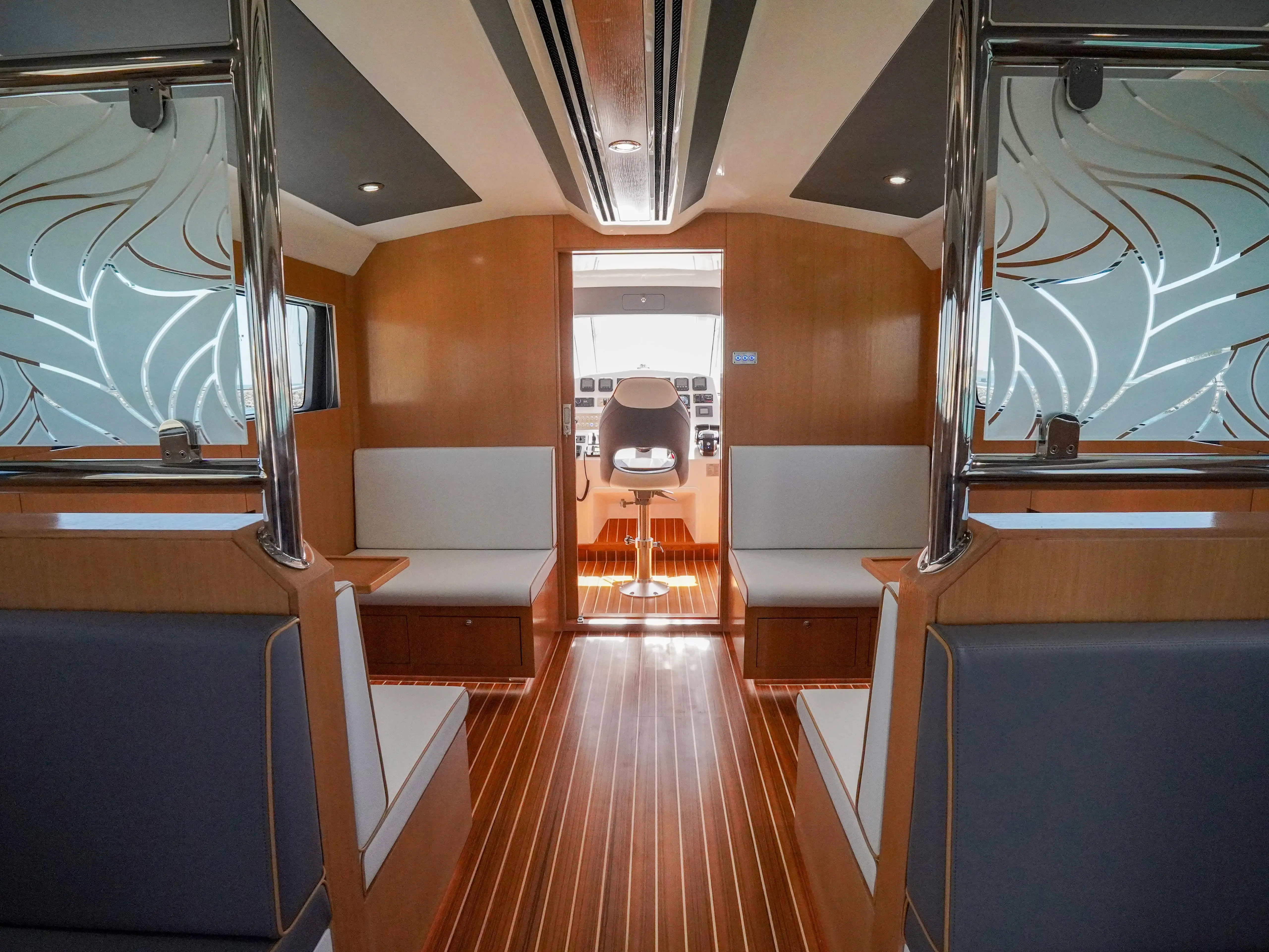

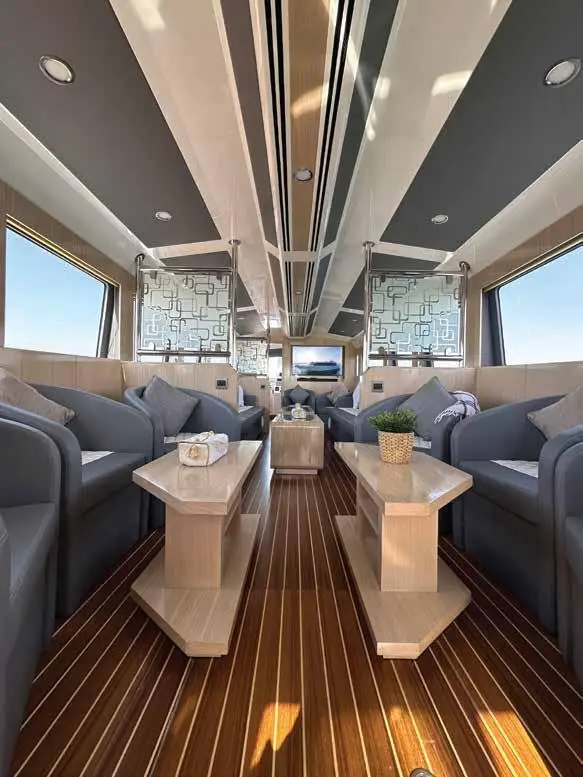

7. 6 x Single sofa seats with two movable wooden tables
in Aft saloon and two single sofa seats in forward
saloon (with eight small and eight big Throw pillows)
8. 2 x Coffee Table in Forward Saloon

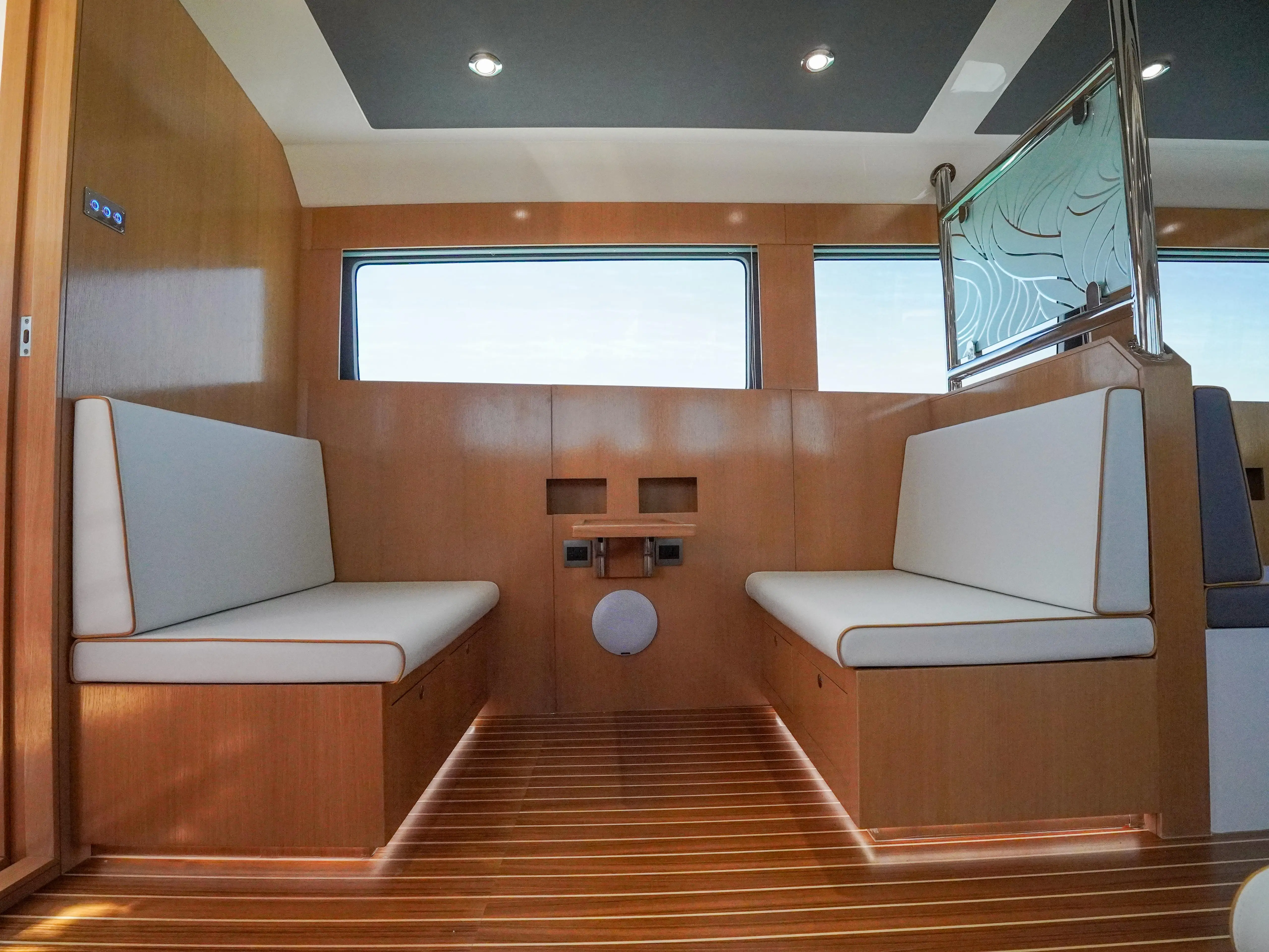

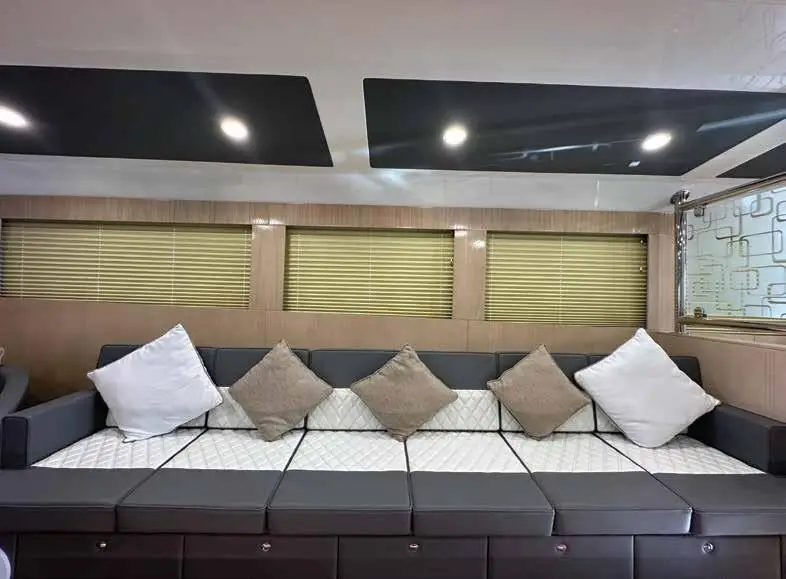

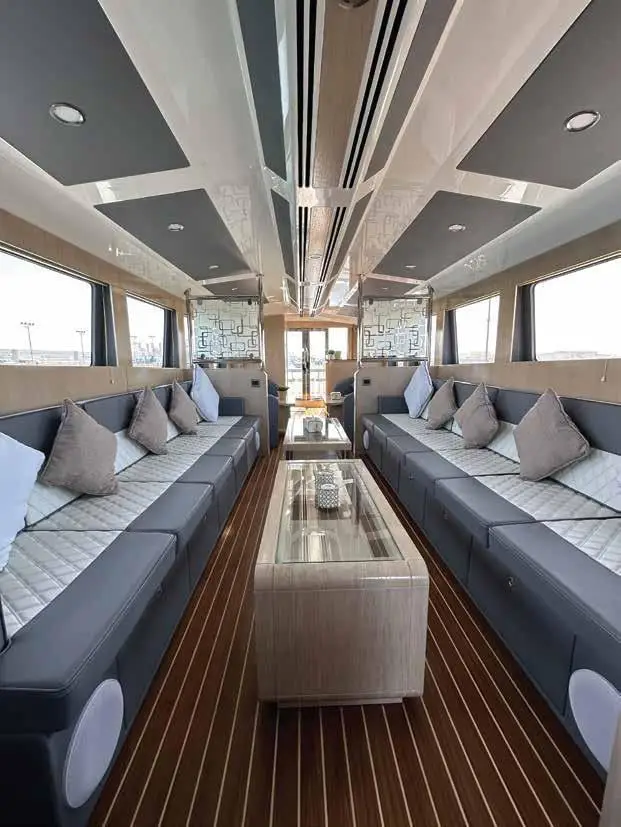

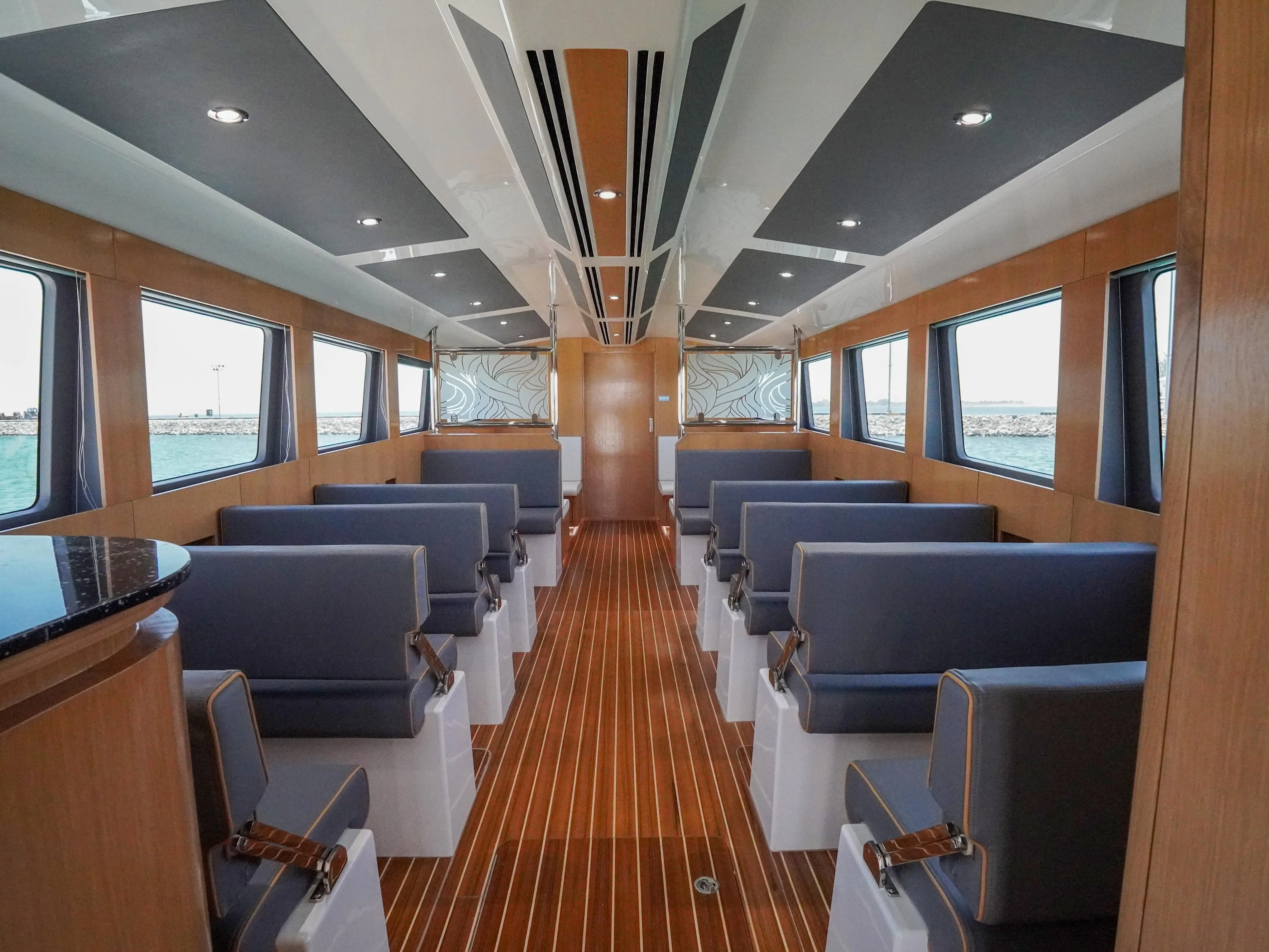

9. Saloon Sofa for 6 Persons each side (Port & STBD)
with luxury upholstery & 16 Throw pillows (8 small &
8 big) colour TBA
10. 1 x Foldable seat in Wheel house with counter
storage and cabinet close in Captain entrance door

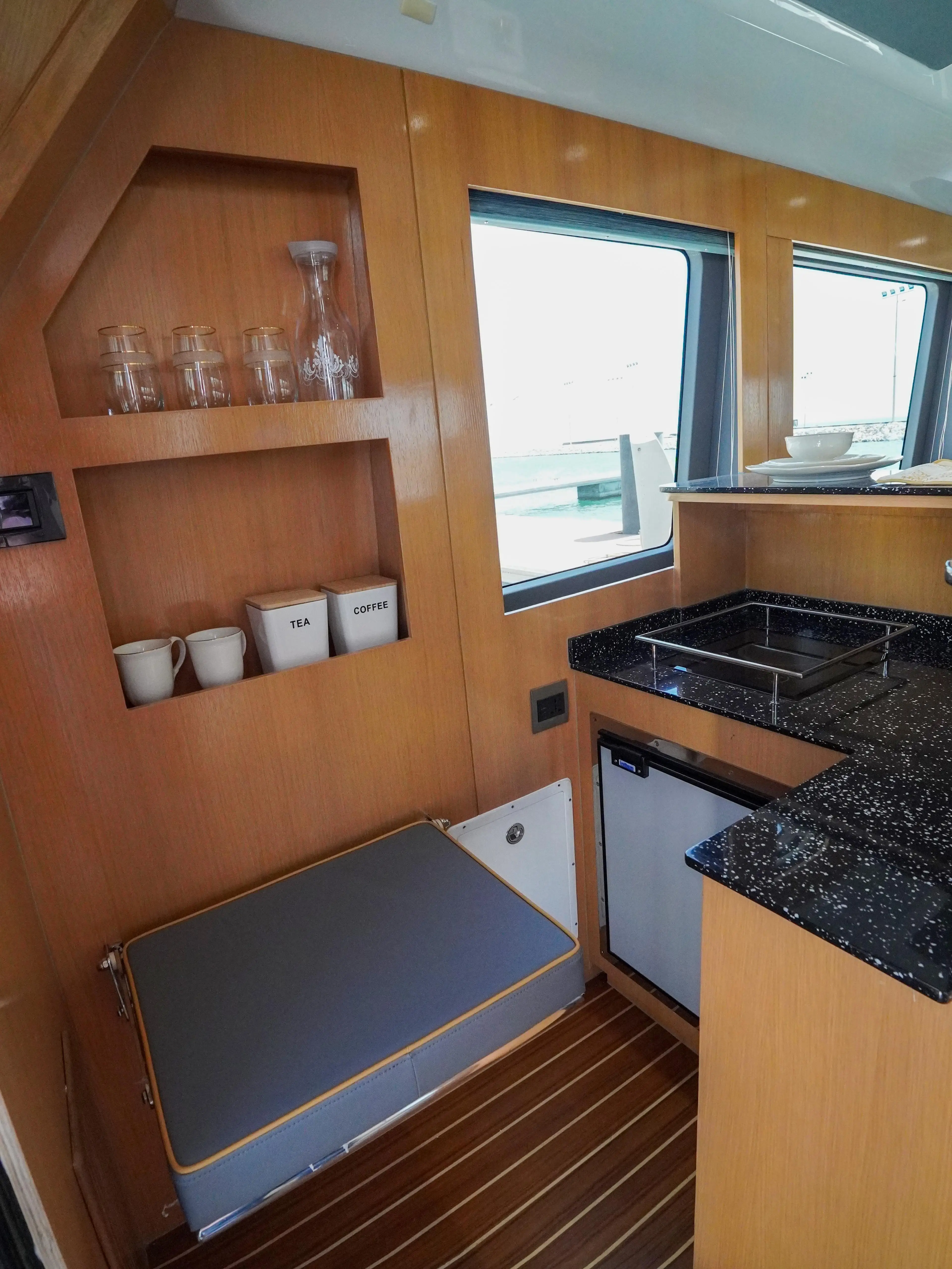

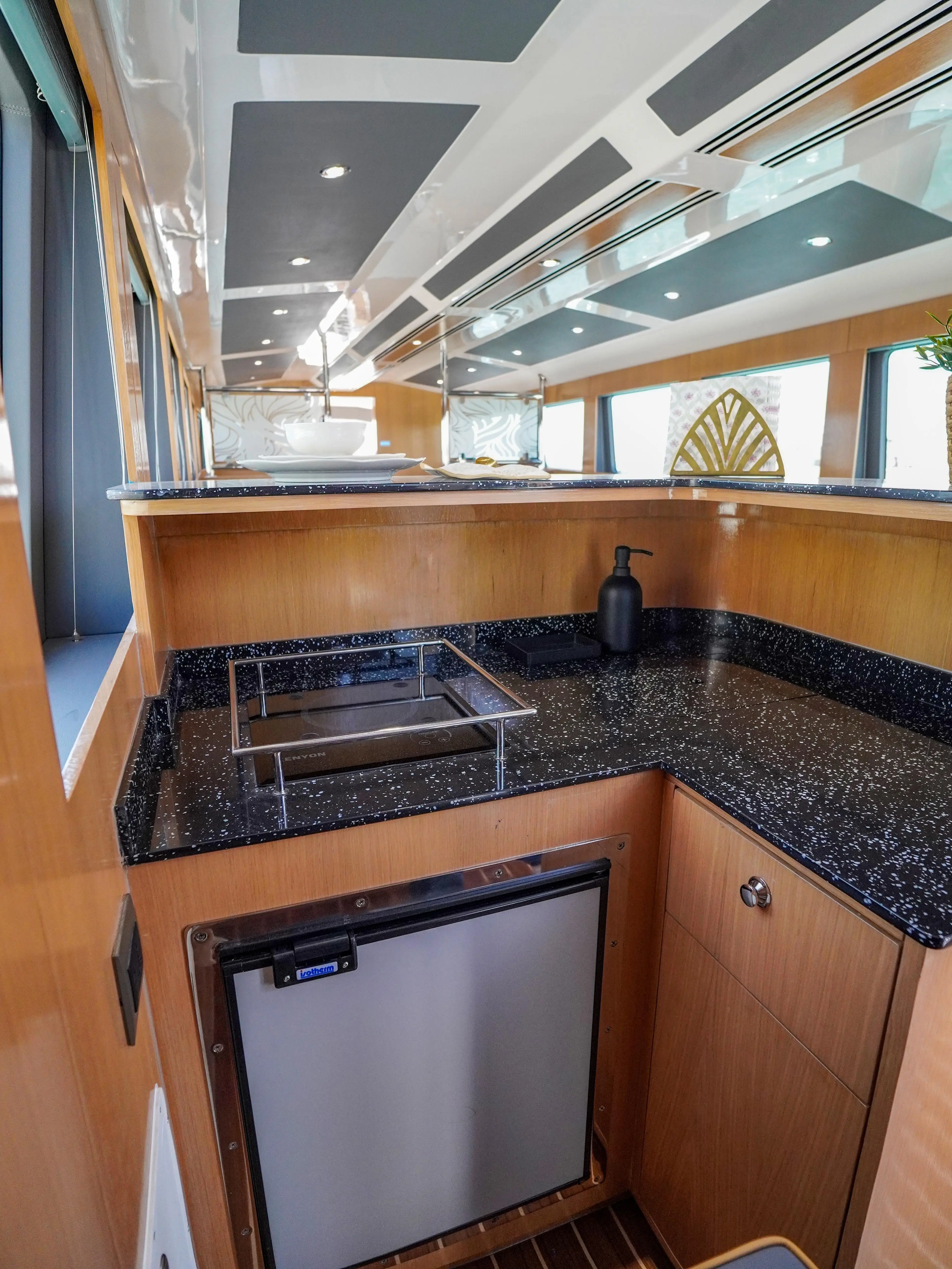

11. Wet Bar in Port side with corian top and drawers
underneath, Sink and small foldable chair with
cushion

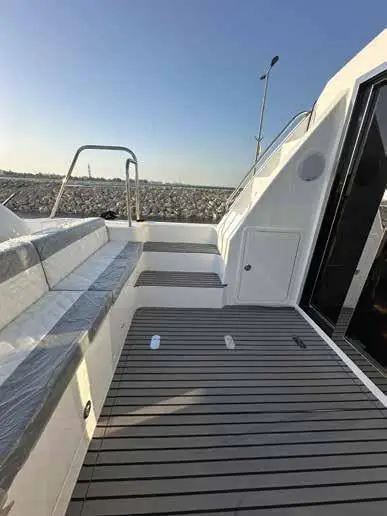

12. Aft seat with cushions & stainless steel fixed backrest
13. Rexine ceiling panels with design (colour TBA)
14. Side wall panels Port & STBD (colour TBA)

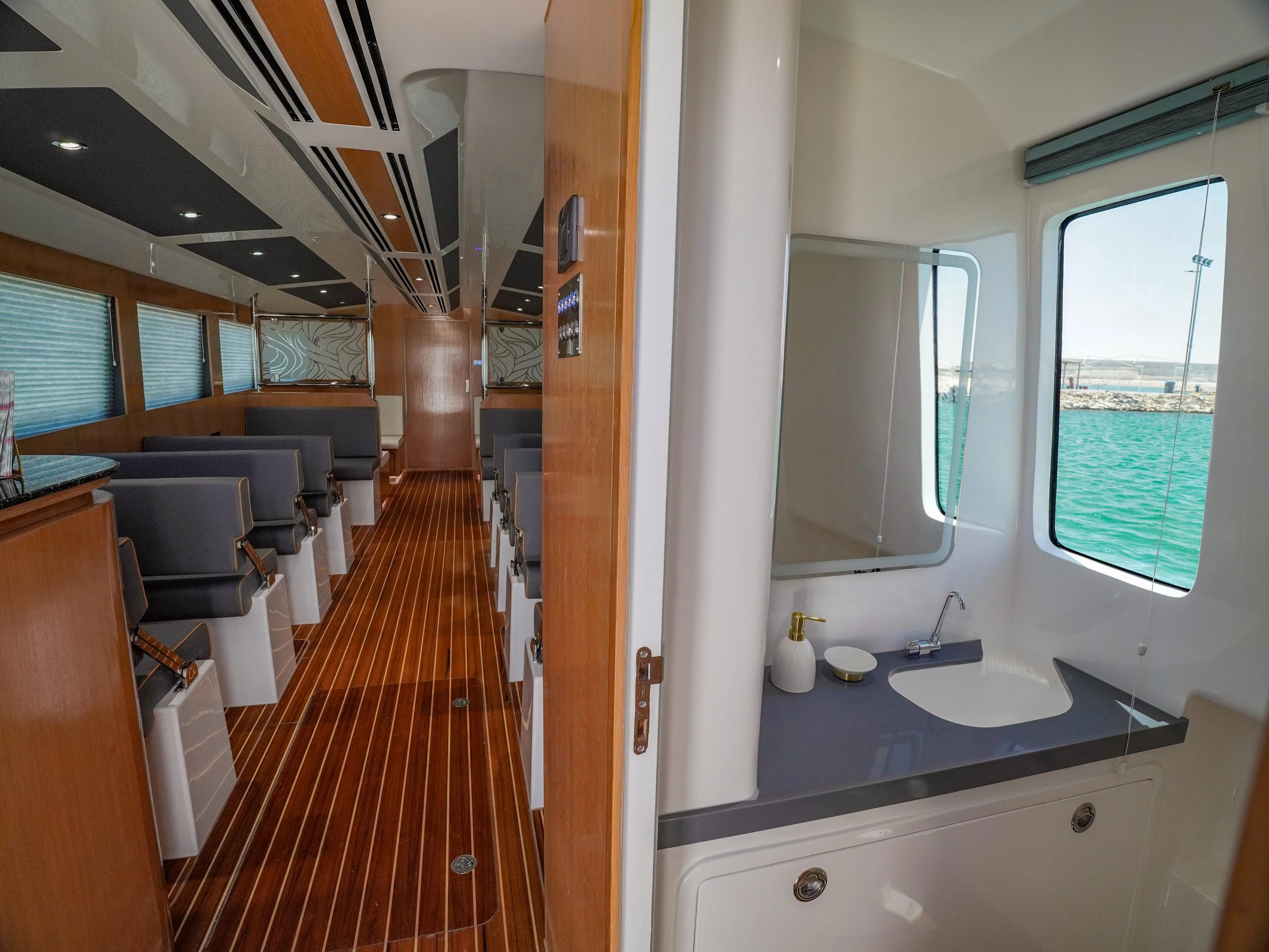

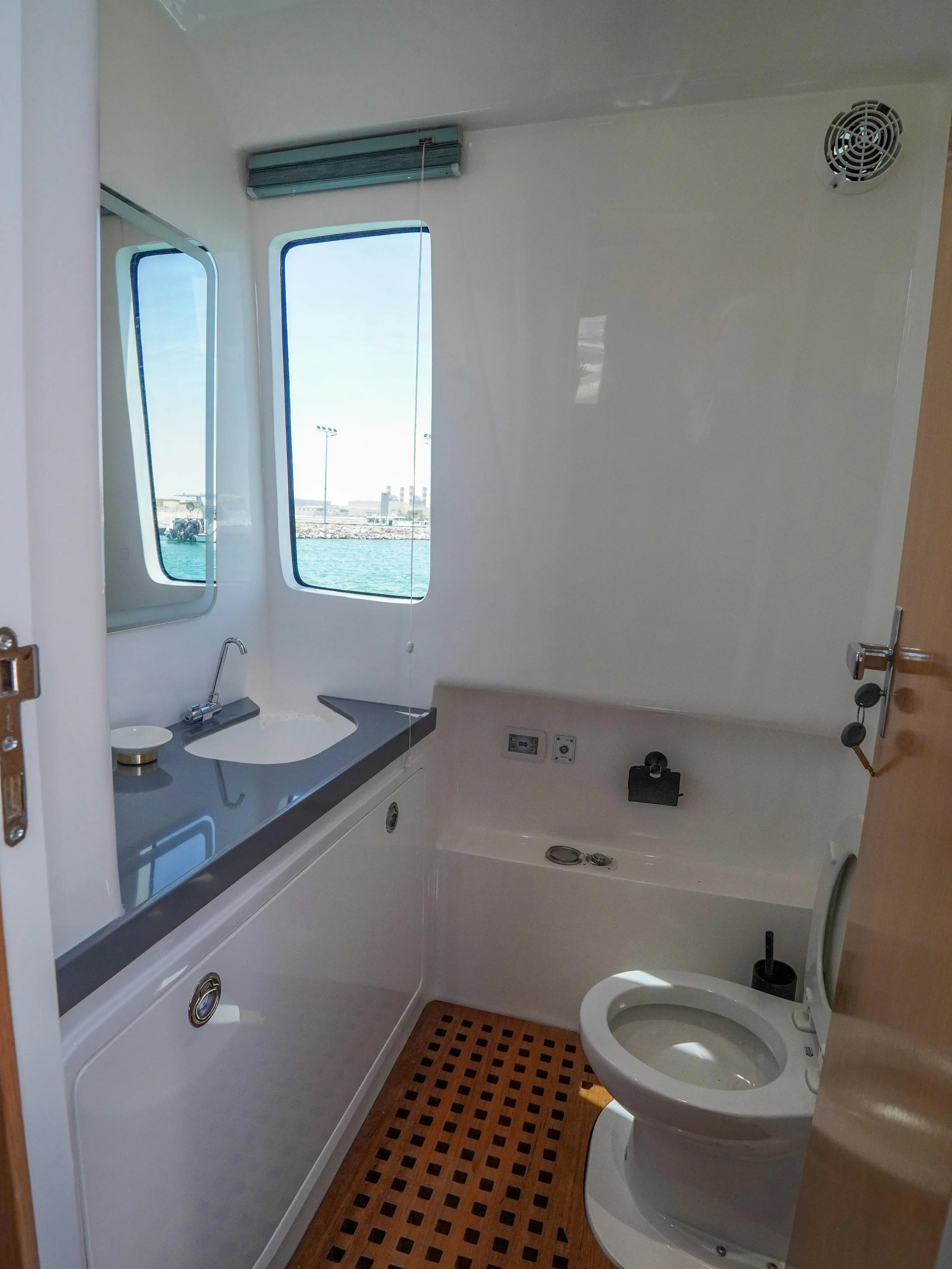

15. Bathroom in STBD side with teakwood flooring ,
Electric Toilet, shower, corian top sink, wash basin,
cool ventilation/exhaust fan, mirror with strip light,
tissue holder, towel holder, two shelf with stainless
steel rail and
16. Aft fiber glass door with full size clear acrylic
17. 3 x Stainless Steel partition with frosted glas and
wood base (one forward in port side & two Aft (one
port & one STB)
18. Corian top sink inside the bathroom
19. 2 x Divider corian top inside the bathroom with small
stainless steel rail
20. GRP flooring sheet to cover the bow thruster
including all equipment and Engine compartment
21. White PVC Fender with stainless steel insert
22. 8 x 10” Stainless steel pull-up cleats
23. 3 x Stainless steel U-Bolts (one forward & two aft in Port & STBD)
24. 1000 Liters Fuel tank with fittings
25. E200 Liters Fresh Water tank with fittings
26. 250 Liters diesel tank with fittings
27. Stainless steel mast
28. Stainless steel forward rails (Port & STBD)
29. Stainless steel Aft handrails (Port & STBD)
30. Stainless steel roof handrails (Port & STBD)

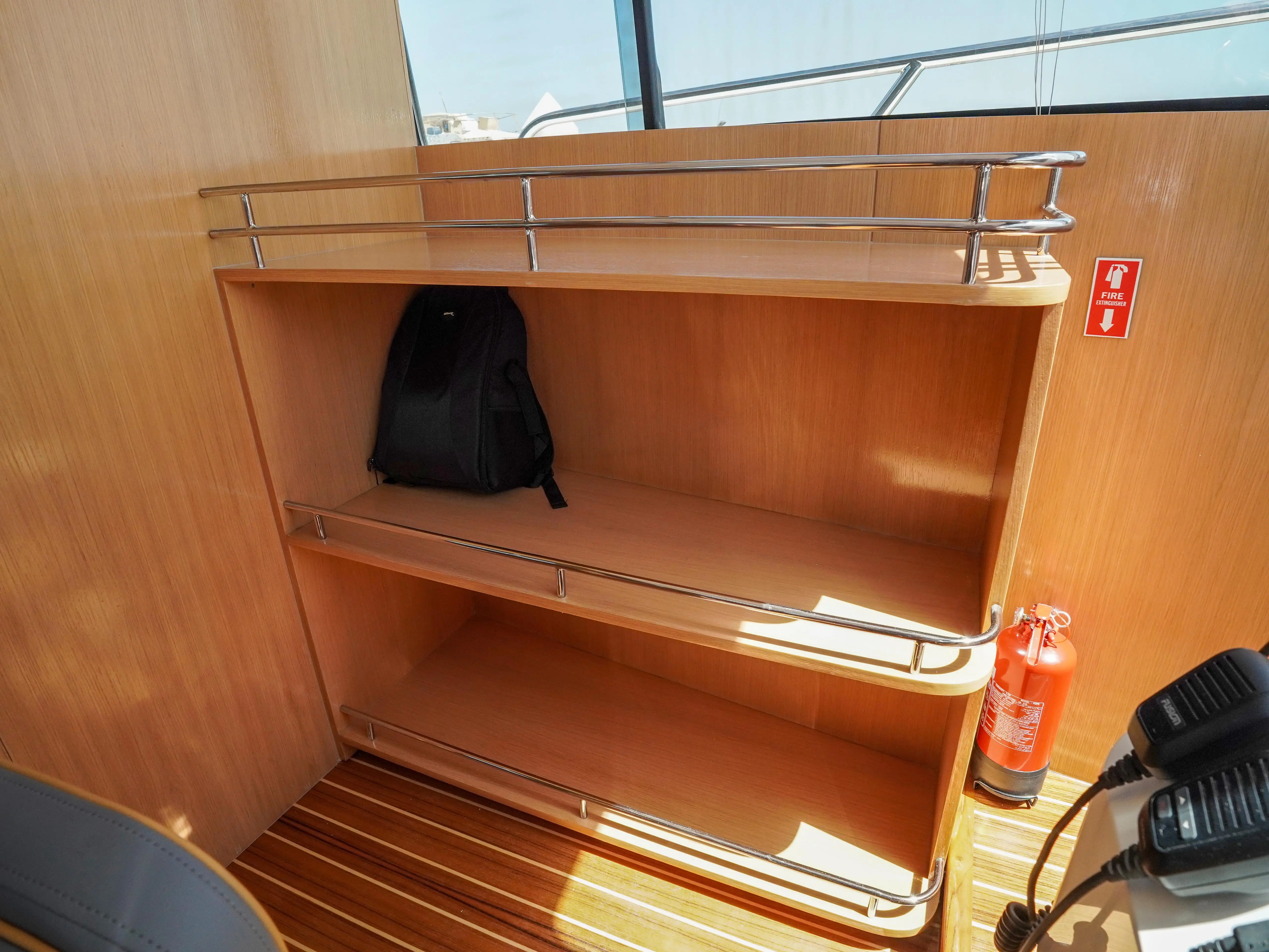

31. 1 x Front luggage shelve with corian top & stainless steel rail
32. Anchor step ladder (as per GA)
33. 4 x 2kg Fire extinguishers
34. 2 x 2kg Automatic fire extinguishers (one in generator room & one in Bilge compartment)
35. 1 x Manual Bilge pump
36. GRP AC vent above the console (Por & STB side)
37. Forward door gas spring
38. GRP sheet panel in bilge compartment
39. Electric winch with stainless steel anchor, stainless steel Chain 5 mtr. 50 meter rope and stainless steel bow roller
40. Navigation light, Mast light and Stern light
41. Magnetic compass
42. 12v USB socket
43. 4 x 2000GPH & 1 x 3700GPH Bilge pumps with Auto float switch and alarm

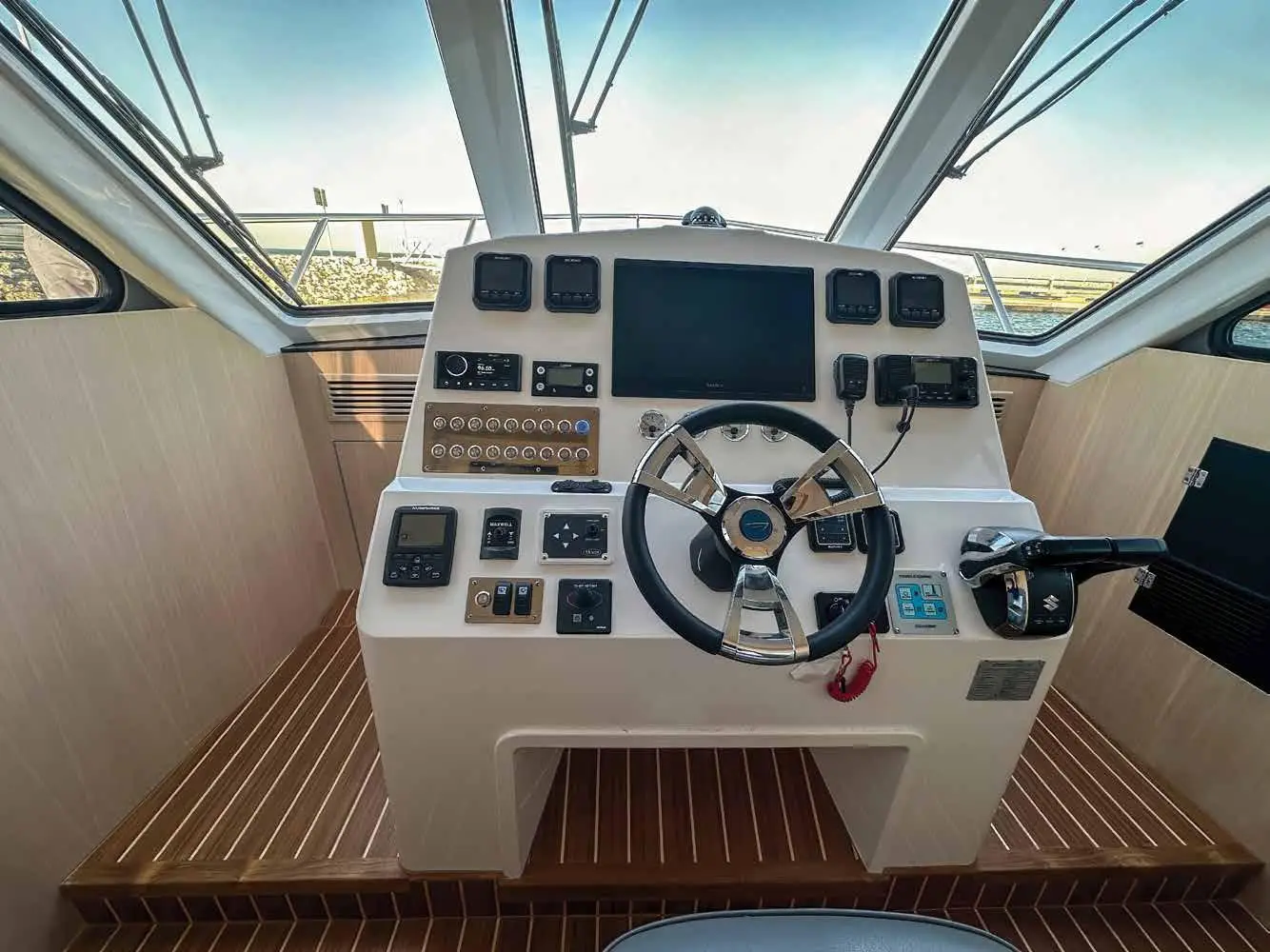

44. 1 x Garmin GPSmap 8416 xsv with Blue chart (Region to TBC) + Transom transducer
45. Fusion stereo Apollo 670 with Airplay and 7.7”sports 6 Fusion speakers white colour (two front, two midship & 2 Aft
outside saloon)
46. 10 mtr. Strip lights underneath the sofa (Port & STBD) and Strip light below the Galley counter
47. Strip lights below the galley counter
48. 24 x Ceiling lights (1red colour captain’s light)
49. 2 x Toilet light
50. 2 x Aft deck lights
51. 2 x Spreader light (one in front of Search light & one Aft)
52. 7 x Under water lights (Blue)
53. 2 x Bilge compartment light
54. 3 x Long Wipers in Front glass
55. 2 x Service Batteries
56. 1 x Electric Dual trumpet Horn
57. 7 x 230v single socket with USB, and 1 x 230volt dual socket with USB
58. 1 x Battery charger 50 amp with Shore power system with 15 mtr. Cable
59. Forward GRP step ladder light
60. 2 x 27,000 BTU & 1 x 16000 BTU Self contained AC
61. 1 x 13.5KVA Marine Diesel Generator (soundproof compartment in generator compartment)

ENGINE OPTIONS

4 x 300HP Suzuki Outboard Motor Extra Long Shaft 25”

3 x 350HP Suzuki Outboard Motor Extra Long Shaft 25”
